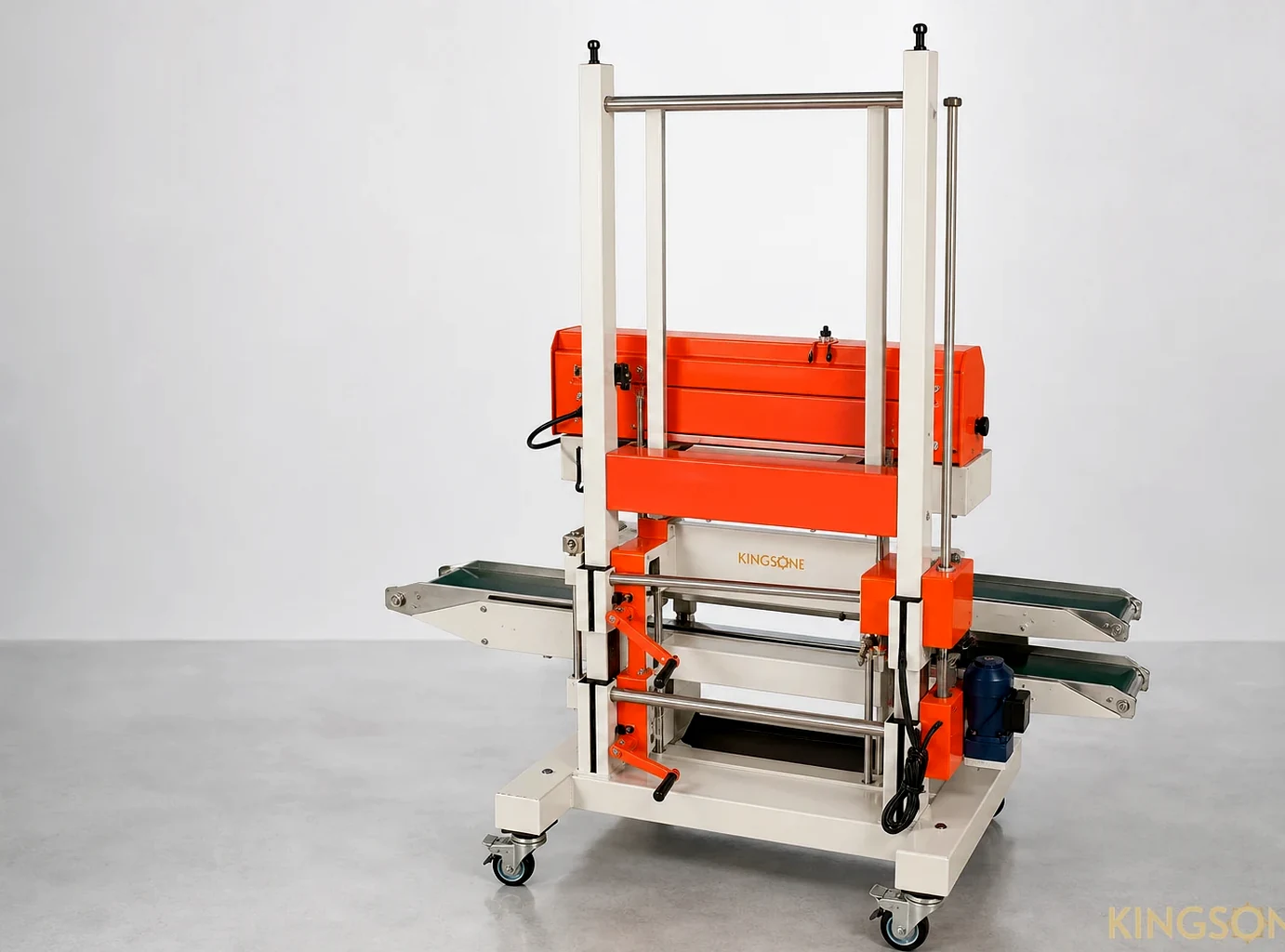

ACSM-1680 continuous sealer
Model ACSM-NKSO-1680 for packaging operations that need adjustable speed, temperature control and continuous sealing with a stable seam.
ModelACSM-NKSO-1680 / ACSM-1680
Speed0-20 m/min, adjustable
Seal15 mm width; 0.02-0.5 mm film
PowerAC 220V/50-60Hz; 1000W total
Recommended use
The ACSM-1680 is used as support equipment for continuous sealing in operations that do not require a fully automatic line but need better consistency, finish and process control in packaging.
Main specifications
OperationAdjustable sealing speed from 0 to 20 m/min and unlimited sealing length.
Compatibility15 mm seal width, 0.02 to 0.5 mm film thickness and 50 to 800 mm package height.
Temperature0 to 300 °C temperature range, with 400W x 2 heating components.
DimensionsMachine size 1700 x 750 x 1600 mm; approximate weight 130 kg.
Documentation and delivery
Support can include technical sheet, operation recommendations, packing and coordination of spare parts or consumables. Final configuration is reviewed by application, voltage and customer requirements.
